Intelligent Liquid Transfer Peristaltic Pump Water Treatment

Intelligent Liquid Transfer Peristaltic Pump Water Treatment

    Preço unitário: 570~800 USD
    Quantidade de pedido mínimo: 1 Set/Sets
    Pacote: 1. carton with plastic foam 2. follow clients requirement
    produtividade: 1000sets per month
    marca: Chuangrui
    transporte: Ocean,Land,Air,Express
    Lugar de origem: China
    Habilidade da fonte: 1-3 sets 7days; above 3 sets, can be negotiated
    Certificados : CE, ISO9001
    Código HS: 9026100000
    porta: Tianjin,Beijing,Shanghai

Informação básica

Modelo: BT600LC

Descrição do produto



Intelligent Liquid Transfer Peristaltic Pump Water Treatment

The touch screen peristaltic pump, has one substantial benefit:  accurate dispensing or metering without risk of cross-contamination. Peristaltic metering pumps became ideal for a wide range of industries and applications because of this advantage.

For example, in medical or laboratory devices, touch screen peristaltic pump can be used for processing of sterile fluids, dialysis, filtration, or bio-processing, Our model BT300LC Liposuction Infusion Pump is very popular in hospital, it has high accuracy as its also high precision peristaltic pump. In food, agriculture, or disinfection processes, they can be used for dispensing food or beverages, vitamins or chemicals. It also can be used for wastewater treatment or other environmental application such as condensate removal in gas analysis. So if you want high precision peristaltic pump with high flow/medium flow/micro flow, Chuangrui brand is the best choice.

Stepper Motor Transfer Peristaltic Pump

Parameter   Model : BT600LC/YZ1515x

Speed

0.1-600rpm

Speed resolution

0.1rpm

Flow rate

0.007-2280ml/min

Control Method

Touch screen + keypad

Display Mode

LCDEnglish and Chinese optional

Power supply

AC220V±10%(standard) or AC110V±10%(optional)

External control

Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )

Communication interface

RS232 and RS485, support MODBUS protocol mode

Foot pedal

Yes

Stepper Motor Peristaltic Pumps


Small Bottle Filling Peristaltic Pump

Product Description



Four working modes

Tube specifications for the pump head YZ1515x(black is defaulted)
Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model
ID(mm)
OD(mm)
Standard material
Flow range(ml/min)
18#
7.9
11.1
Silicon tube
0.38-2280
17#
6.4
9.6
Silicon tube
0.29-1740
25#
4.8
8
Silicon tube
0.17-1020
16#
3.2
6.4
Silicon tube
0.082-492
19#
2.4
5.6
Silicon tube
0.051-306
14#
1.6
4.8
Silicon tube
0.027-162
13#
0.8
4
Silicon tube
0.007-42

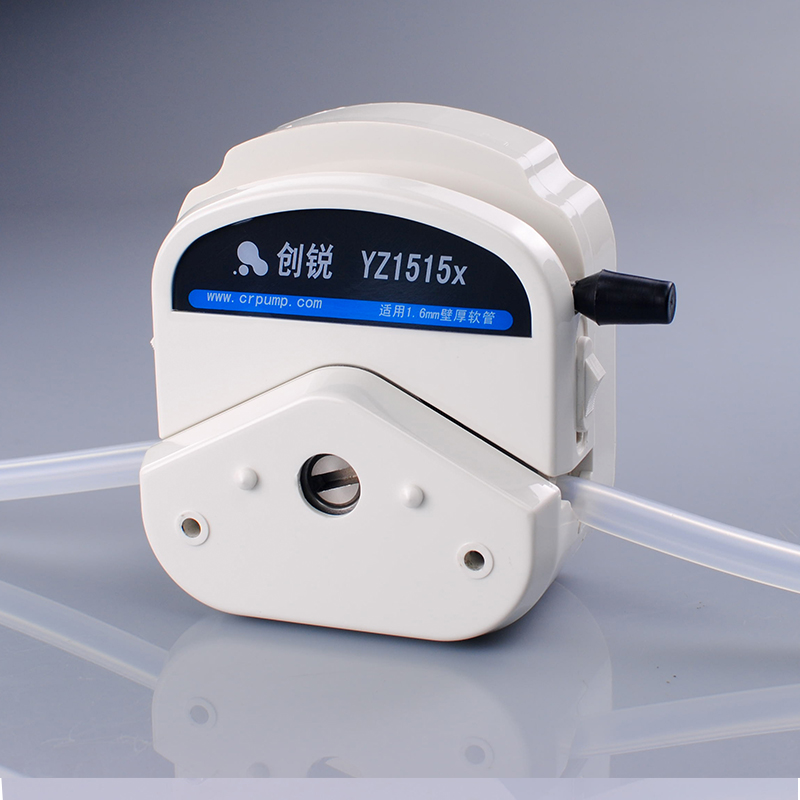

Pump head with PPS material (Black)


Pump head with PSF material (White)


Order guide

How to choose the suitable filling pumps for your application ?Can you first to confirm some details as below :

1, What's your bottle's volume? ( )ml 2, How many channels you need? ( ) 3,What kind of liquid you will dose ?is it corrosive ? ( )
 Noted:
The defaulted model we will send is 600LCB21  or 600LCB11.
Order number
Model
Pump head
Power supply
Channel number
Flow range with 18# tube
600LCB21
BT600LC
YZ1515x(black)
AC220V
1
0.38-2280ml/min
600LCB11
AC110V
1
600LCB22
AC220V
2
600LCB12
AC110V
2

Packing list
1
Pump :BT600LC/YZ1515x(black)
2
Silicon tube: 18# 2 meters
3
Power plug
4
User manual
Weight
8 KG
CTN MEAS
36*25*36CM

Why choose this transfer pump?

·1.Storage function-user data storage function:(9 sets of data) .
·2.External control function-Multiple mode selection: communication mode, analog mode,foot switch control.Provide customized services.
·3.Memory function-data will be stored in time after power off. When power supply is restored, the pump can remember the parameter Settings before power off, which is more safe and reliable.
·4.Calibration function-intelligent flow calibration: after setting the target flow, input the actual flow value, and the system will automatically carry out flow calibration to ensure the flow accuracy
5.Full speed function-one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc
6.Suckback function-By setting Suckback angle and Suckback speed to prevent liquid dripping and ensure fluid accuracy.
7.lock screen function-lock screen design, error proof touch, application more secure.

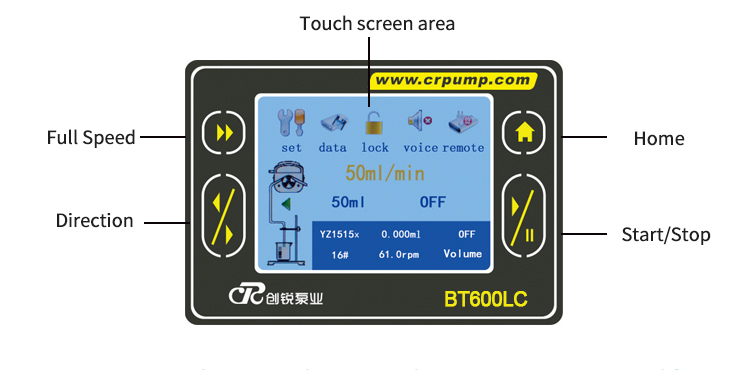

8.Display function-real-time animation of the operation interface shows the running state and working parameter.
9.Touch-screen function-3.5-inch color LCD screen, (English and Chinese optional) , touch-screen operation, intuitive and intelligent.
10.Whole housing design-stainless steel housing,sturdy and durable , multi-face seamless whole housing design, Long service life, high cost performanc

Application
Peristaltic pumps are widely used in laboratories and scientific research institutions; chemical industry; construction industry; mining, metallurgy industry; paper industry; paint industry; food and beverage industry; ceramic industry; water treatment industry; bio pharmaceutical industry; agricultural hydroponics industry; Equipment industry; industrial washing machine matching; packaging machinery industry, etc.

Typical application for dosing machine

Peristaltic pump for quantitative addition Which with touch screen can set the quantitative/ time you want to transfer. Support foot pedal easy control.
